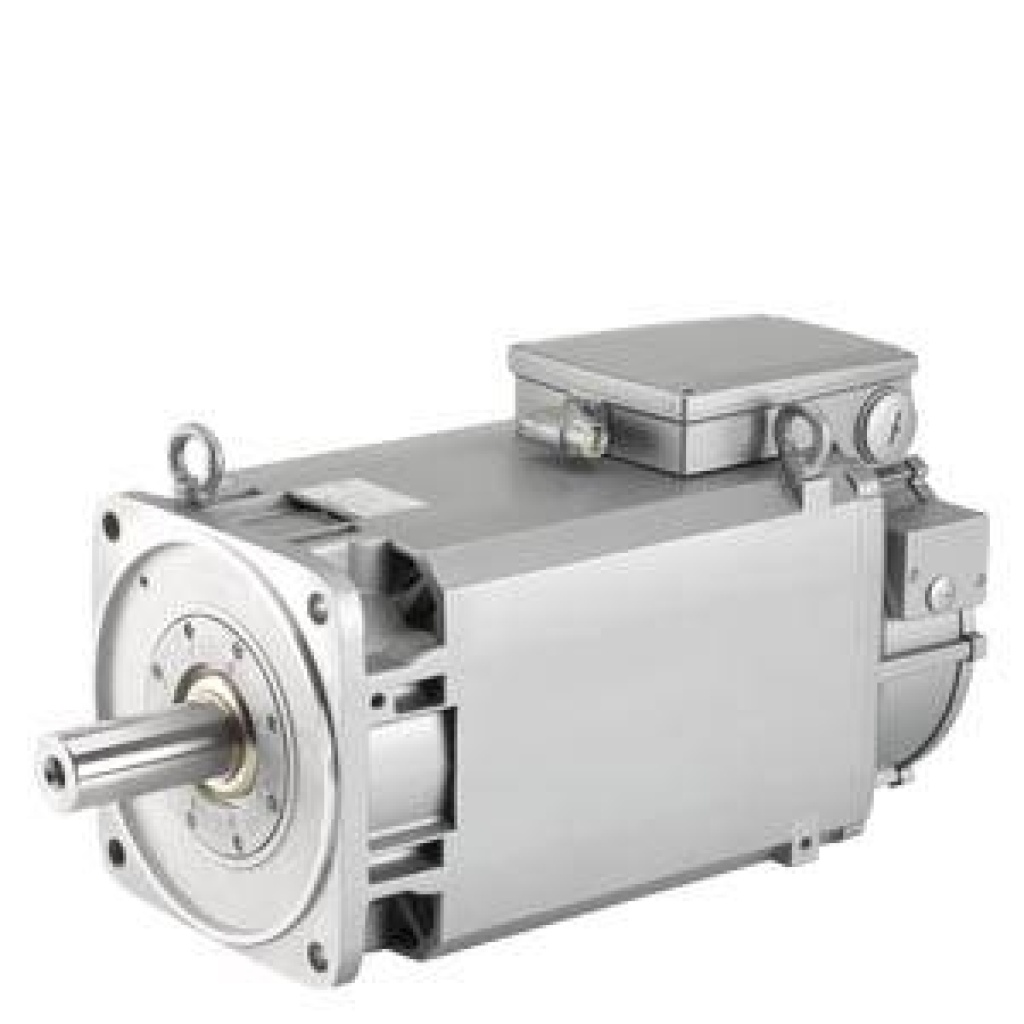

SIMOTICS M compact asynchronous motor 2000 rpm 7 kW 33 Nm 17.5 A 345 V 2300 rpm 7.5 kW 31 Nm 17 A 382 V 2650 rpm 8 kW 29 Nm 16 A 434 V 2800 rpm 8.5 kW 29 Nm 16 A 455 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
